Detalles del producto / volumen de suministro
COMFORT variant - options selectable
(Colour/preparation column 8+8)
- RAL 7040 -
Description:

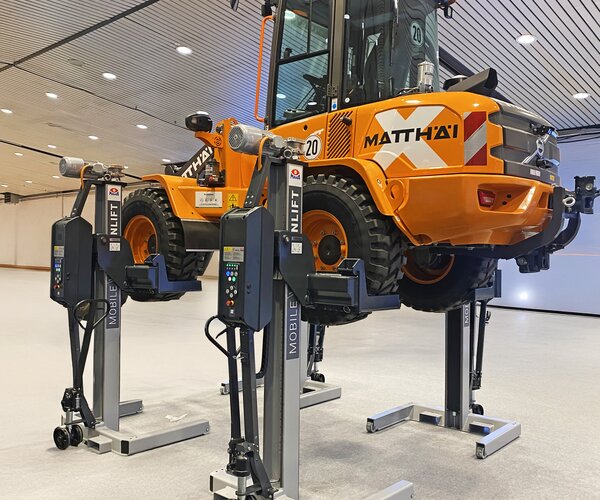

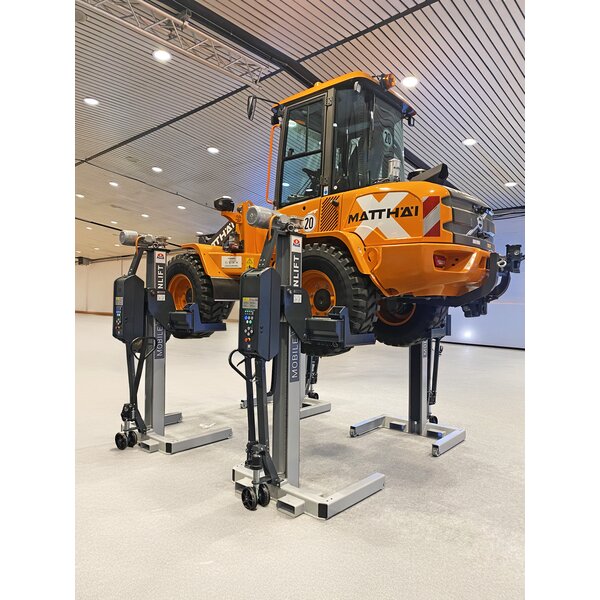

- Mobile, wireless wheel lift with energy supply via powerful rechargeable lithium-ion batteries
- High running smoothness and exact heightpositioning without overtravel due to high-quality and maintenance-free worm gear motor
- High efficiency and low wear due to smooth-running and low-maintenance recirculating ball nut with more than 100 balls
- Recirculating ball spindle suspended in maintenance-free roller bearing
- Outstanding mechanical rigidity of lifting columns due to tried-and-tested H-profile
- Safety in the event of support nut breakage due to mechanically independent catch wedge
- Adjustable lift carriage with positive locking device of forks; securing by means of folding cotter pin
- Hydraulic dolly for easy manoeuvring even over higher ground thresholds
- Minimal turning radius due to optimised design
- Goodoverview when manoeuvring due to very slim column
- Modern LoRa® radio modulation - failure- and interference- free
- Automatic channel hopping selection of a suitable, free radio channel through the system - one free radio channel 2.4 GHz (W-LAN) required
- Intelligent control technology makes it possible to use an unlimited number of column groups per site

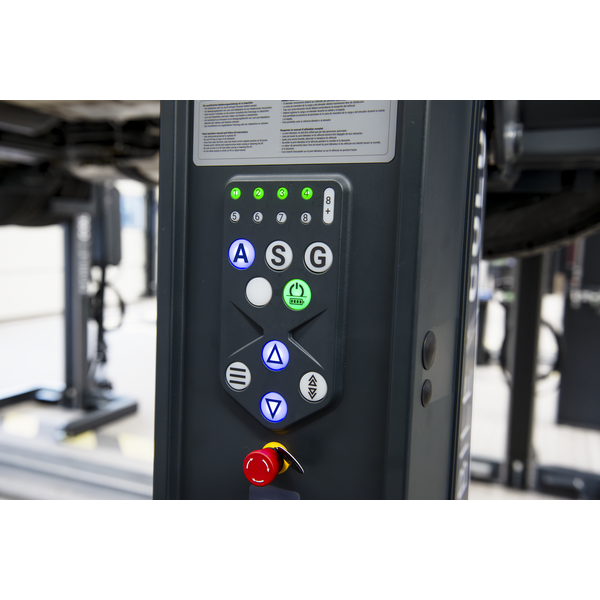

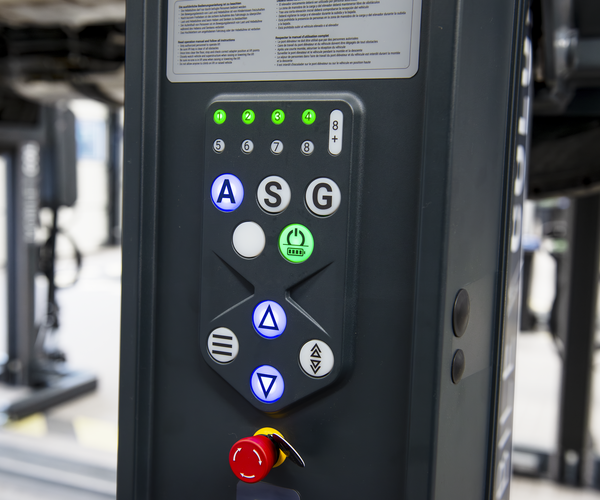

- Operating modes All/Single/Group safely selectable via individual buttons
- Display of operating statesand error codes via LED
- High lifting and lowering speed can be selected via separate, additional button - load-dependent
- Automatic switch-off in case of overload
- Workshop robust and splash-proof plastic operating enclosure on each column
- Large silicone control buttons - mechanical and focused on use in workshops
- Excellent protection for cables due to guidance within a high-quality energy chain
- Height measurement via contactless, wear-free inductive proximity switches
- Simple and secure pairing of lifting columns by means of NFC tag
- Unique energy supply by means of lithium-ion battery integrated into the operating enclosure - very long lifespan and short charging time
- Universal lifting carriage with a large adjustment range - also suitable for very large wheel diameters
- Low chassis and high mobility due to integrated lithium-ion battery in the control unit. This enables optimised positioning even onvehicles with low ground clearance
- Chassis with integrated forklift pockets easy movement of columns over longer distances on site
- Two antennas, one each at top and bottom, ensure a reliable radio connection, even for vehicles with large cubic bodies
- Unique and double safety. If the radio connection is interrupted, the batteriesýÿ charging cable can be used for data transmission to guarantee continuously uninterrupted operation
- By means of an optional connecting cable, two groups of 8 columns each can be connected, thus expansion to as many as 16 columns (hardware requirements available, software on request)
- High-quality powder coating:
- window grey, RAL 7040 (columns)
- anthracite grey, RAL 7016 (lifting carriage)
Scope of delivery:
- 1 mobile single column with 1 lithium-ion battery
- 1 NFC tag for pairing the lifting columns
- 1 hydraulic dolly
- Operating instructions
- Declaration of conformity
- Transportpackaging
Descargas
Documentos de venta
Folletos | ||
---|---|---|
Folleto MAHA C RGA
|
||
Folleto (Versión para imprimir) MAHA C RGA print
|
Ficha Técnica | ||
---|---|---|
Ficha técnica C_RGA 8.5 UC
|
||
Ficha técnica (Versión para imprimir) C_RGA 8.5 UC
|
Documentación técnica
Manuales de instrucciones | ||
---|---|---|
Manual de instrucciones C_RGA 7.5 | 8.5 UC (Versión completa)
|
||
Manual de instrucciones C_RGA 7.5 | 8.5 UC (Versión imprimible para usuarios finales)
|
Dibujos de productos | ||
---|---|---|
C_RGA 8.5 UC Hoja de datos con dimensiones principales
|
Datos técnicos
Technical data:
Load capacity CE per column | 8500 kg |
Drive power per column | 1.5 kW |
Weight per column | 525 kg |
Width of column profile | 180 mm |
Width of chassis | 1150 mm |
Height of chassis | 131 mm |
Full travel | 1700 mm |
Lifting height (upper edge of lifting carriage) | 1800 mm |
Overall height of column | 2474 mm |
Lifting/Lowering time (load-dependent) | 140 s |
Lifting/Lowering time High speed (load-dependent) | 81 s |
Inner distance of support forks min. - max. | 290 - 680 mm |
Tyre diameter min. - max. | 550 - 1500 mm |
Length of support forks | 380 mm |
Voltage for charger | 1 x 100-230 V AC 50/60 Hz |
Fuse | B 16A RCD (30 mA) |
Power supply (standard) | LiIon 50.4 VDC/1573 Wh |
Lifting cycles under partial load | 30 |
(3500 kg, w/o high speed option) | |
Lifting cycles under full load (w/o high speed option) | 15 |
Protection rating | IP 54 |
