MPJ 16.5/1200 2S TA VP 454279

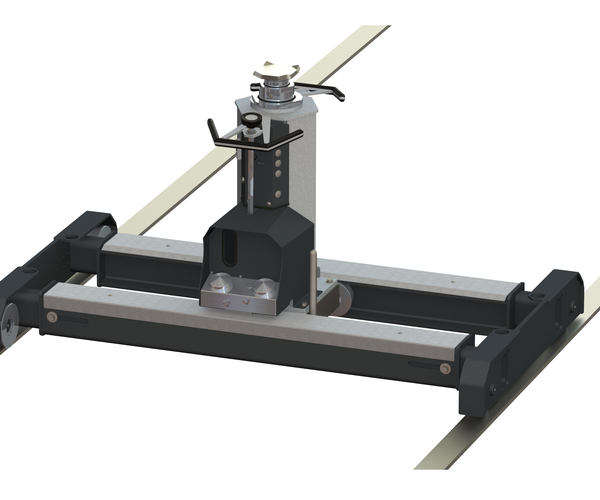

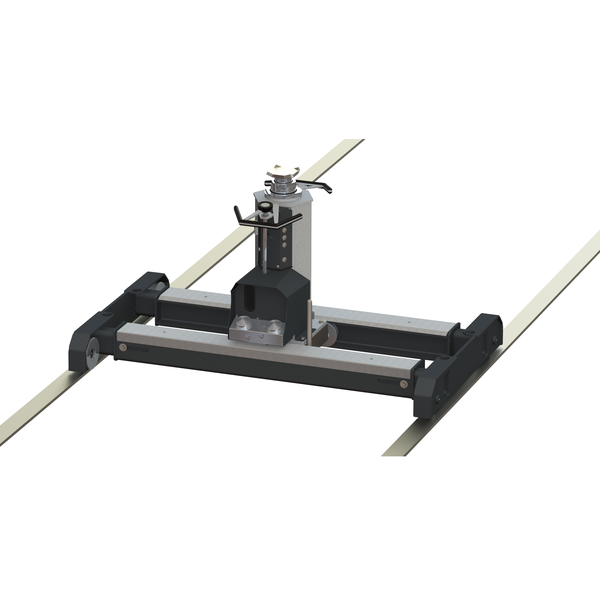

El elevador de ejes y transmisiones eleva hasta 16,5 t. El elevador de ejes y transmisiones con carrera del émbolo doble telescópica (carrera del émbolo 1200 mm) se mueve sobre carriles de rodadura inferiores. Libre de carga, un mando rápido por aire comprimido permite un movimiento rápido de ambas secciones telescópicas, así como un retroceso rápido de las bielas. También está equipado con un motor de aire con mando por pedal para elevar la biela bajo carga.

Detalles del producto / volumen de suministro

2-stage telescopic, rail-guided, floor-running

Description:
Automatic axle and transmission jack
with pneumatic motor and fast control
in slim design specifically for dismantling assemblies
and lifting vehicles up to 16.5 t

Control:

  • Unique synchronised telescopic lifting cylinder for quick load lifting with fast control
  • Efficient fast control for UP and DOWN movement integrated as standard
  • Precision, user-friendly foot control using compact and robust operating unit for quick lift and load lift
  • Delicate and precision lowering of the pit jack with tried (>&)> tested system with integrated dead man's control
  • Telescopic stages protected against corrosion thanks to the Venturi effect (separation of hydraulic oil and airflow)
  • Integrated cover to protect against unintentional operation


Design:

  • Precision floor-runnable, rail-guided pit jack for easy movement (needle bearings included as standard) of built-on units, including while loaded
  • Telescopic carriage for precision adjustment of pit jack lane width to fit the rails in the work pit
  • Precision-guided track rollers (flange guided)
  • Optional rollers for U profile or wall-guided with flat steelpossible
  • Secure jack holding brake in transverse direction across the work pit
  • Integrated inspection window for checking oil quality and quantity of the pit jack
  • Optimised removal of the dismantled units thanks to low construction height of the jack due to ideal arrangement of the lifting unit in the carriage
  • With its non-slip coating the carriage can be used as a secure working platform for ergonomic reasons
  • Corrosion-resistant piston rods thanks to self-lubrication
  • High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis


Scope of delivery:

  • Pit jack with hydro-pneumatic automatic control system
  • Carriage with four interior flanged rollers for rails
  • Standard support lugs 120 x 120 mm
  • Operating instructions
  • EC conformity certificate
  • Colour: Jack base frame RAL 7040
    • Attachments and carriage RAL 7016


Descargas

Documentos de venta

Folletos
Folleto PIT JACK
DE EN
Folleto (Versión para imprimir) PIT JACK
DE EN
Ficha Técnica
Ficha técnica MPJ 16.5/1200 2S TA
DE
Ficha técnica (Versión para imprimir) MPJ 16.5/1200 2S TA
EN

Documentación técnica

Dibujos de productos
Folleto PIT JACK Hoja de medidas
DE EN ES FR

Datos técnicos

Technical data:

Load capacity (CE)16,500 kg
Fast stroke power600 kg
Stroke distance1200 mm
Lifting levels2
Min. pick-up height858 mm
Max. lifting height2058 mm
Slide rail width inner dimensions750 - 1600 mm
Carriage adjustable range230mm
Roller rest width44 mm
Roller rest incline0 %
Min. slide rail (W x H)75 x 10 mm
Max. parallelism deviation slide rails10 mm
Roller diameter (at the flange)133 (148) mm
Mount diameter inside/outside45/80 mm
Piston rod diameter80/115 mm
Oil quantity/quality15.3 l / HLP-D 10
Drive350 l/min. 8-10 bar
Operating pressure235 bar
Weight510 kg
