Detalles del producto / volumen de suministro
1-stage telescopic, rail-guided, suspended
Description:

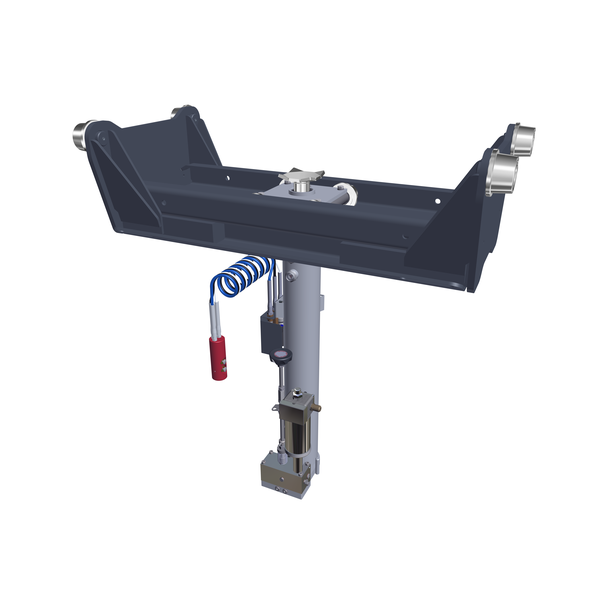

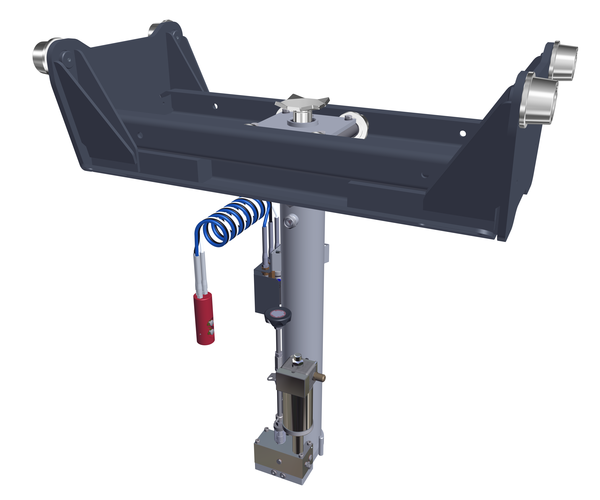

Automatic pit jack
with pneumatic motor and fast control
Specifically for wheel and brake works and dismantling
smaller assemblies in conjunction with axle lifting beams and
support stands for cars and vans with 4.0 t load capacity
Control:
- Efficient fast control for UP and DOWN movement Integrated as standard
- Precision, user-friendly, pneumatic manual control cylinder with magnetic bracket for convenient and flexible quick stroke and load lifting with enlarged view into operator radius
- Delicate and precision lowering of the pit jack with tried <(>&<)> tested system with integrated dead man's control
Design:
- For precise movement, the pitjack is rail-guided at the top edge of the pit
- Guarantees easy movement of the pit jack since all rollers are fitted with needle bearings crossways and lengthways
- Long total stroke of 750 mm to reach high-up units
- The pit jack is fitted with a downward deep-drawn P carriage for integrating an axle lifting beam at any height
- Alternatively, a straight S carriage can be used too
- Variable modular carriage system for various pit widths (700 - 1200 mm) in conjunction with different roller versions and clearance degrees for adapting to work pit circumstances
- Corrosion-resistant piston rods thanks to self-lubrication
- High-quality powder-coating protects against corrosive liquidsand elevates quality look and feel on a lasting basis
Scope of delivery:
- Pit jack with hydro-pneumatic automatic control system
- Deep-drawn P carriage and rollers for rails
- Standard support lugs 120 x 120 mm
- Operating instructions
- EC conformity certificate
- Colour: Jack base frame RAL 7040
- Attachments and carriage RAL 7016
Descargas
Documentos de venta
Folletos | ||
---|---|---|
Folleto PIT JACK
|
||
Folleto (Versión para imprimir) PIT JACK
|
Ficha Técnica | ||
---|---|---|
Ficha técnica MPJ 4.0/750 1S HA
|
||
Ficha técnica (Versión para imprimir) MPJ 4.0/750 1S HA
|
Documentación técnica
Dibujos de productos | ||
---|---|---|
Folleto PIT JACK Hoja de medidas
|
Datos técnicos
Technical data:
Load capacity (CE) | 4,000 kg |
Stroke distance | 750 mm |
Lifting levels | 1 |
Min. pick-up height from roller slide rail | - 69 mm |
Pit jack depth for roller slide rail | 1070 mm |
Max. lifting height above roller slide rail | 681 mm |
Slide rail width inner dimensions | 700 ýÿ 1200 mm |
Carriage adjustable range | 140 mm |
Roller rest width | 40 mm |
Roller rest incline | 8 % / 4.6° |
Max. parallelism deviation slide rails | 10 mm |
Roller diameter (at the flange) | 80 (95) mm |
Support diameter inside/outside | 30/45 mm |
Piston roddiameter | 45 mm |
Oil quantity/quality | 3.3 l / HLP-D 10 |
Drive | 350 l/min. 8 bar |
Operating pressure | 144 bar |
. | 198 kg |
