Detalles del producto / volumen de suministro

Description:

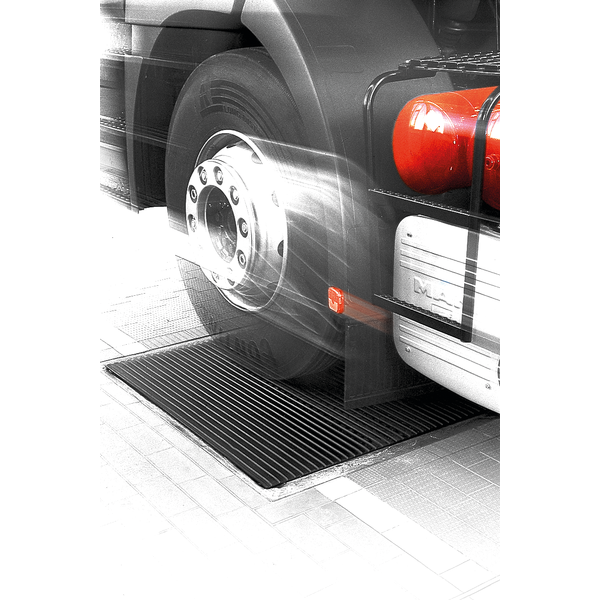

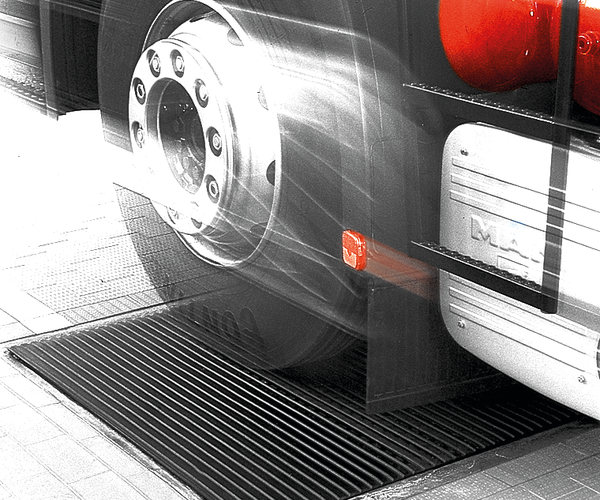

Side-slip tester, checks the axle geometry within seconds
while passed over by vehicle up to 18 t axle load

Specially suitable for truck diagnostic and PTI test lanes,
also for higher vehicle throughput

Fully automaticevaluation of deviation in m/km

In combination with CONNECT Web client:
Automatic display on respective terminal device

device, PC,) when vehicle drives onto tester,

including evaluation in m/km

Design:

  • Side-slip tester C_MINC 18.0
  • Self-supporting frame with movable test plate incl. vulcanised rubber pad
  • High-quality powder coating: anthracite grey, RAL 7016


Scope of delivery:

  • Side-slip tester C_MINC 18.0 floor assembly
  • Prepared for connectionto CONNECT test lane


Descargas

Documentos de venta

Ficha Técnica

Datos técnicos

Technical data:

Axle load18000 kg
Measurement range+/- 20 m/km
Test speed5 - 7 km/h
Floor assembly dimensions (H x W x L)135 x 770 x 1020 mm
